Automatic sliding door

auto sliding door bd, automatic sensor door operator system, dorma motion sensor door, Digital Door System bd, automatic glass sliding door, auto door bd

InTrust automatic sliding door systems provides superior performance and a wide range of innovative solutions to meet the needs of the most demanding environments. From hospital entrances to retail applications, the smooth, quiet operation and versatile configurations make the automatic sliding door system ideal for any application. InTrust Automatic Sensor door system offer single and bi-parting openings, through a variety of styles and configurations. automatic sensor door operator system, dorma motion sensor door, Digital door System, automatic glass sliding door, auto/sensor door bd, automatic sensor door operator system, dorma motion sensor door, Digital door System, automatic glass door, auto/sensor door bd, automatic glass sliding door, automatic sliding door operator, Automatic Sliding Door bd

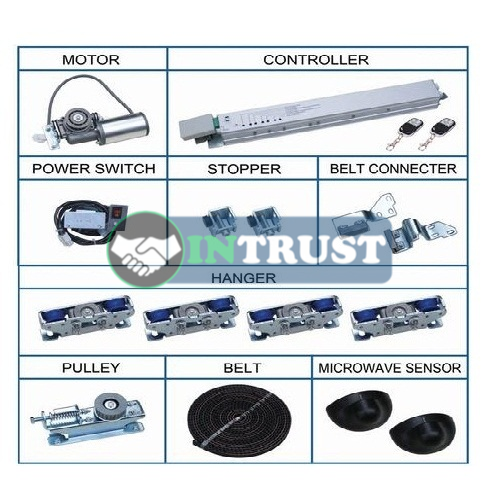

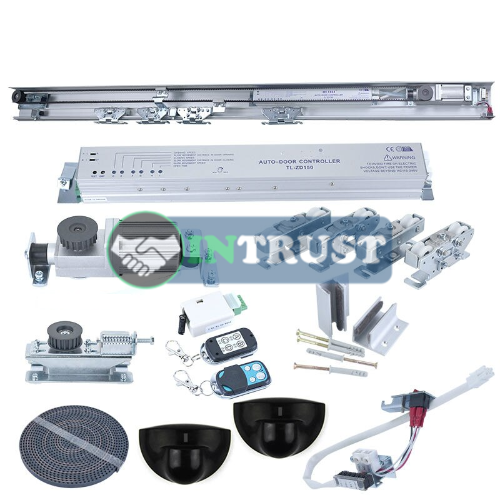

Safe and easy to use, they are suitable for any entrance, from simple opening and closing to providing a hermetic seal. It can be also applied to framed or frame-less glass door. With specially-designed aluminum track and cover (standard length, could be cut as per customer’s need), low-noise round type brush-less motor, non-digital and/or digital microcomputer controller, 24G microwave induction sensors. Optional remoter control device or function keypad, it is commonly used in modern life.

automatic sensor door operator system

ES200, DORMA, GERMANY

  • Door weight max.: 1x200kg, 2x160kg
  • Door Width: 700-3000 mm
  • Opening speed: 10-70 cm/s
  • Closing speed: 10-50 cm/s
  • Hold open time: 0~180
  • Power consumption: 250W
  • Ambient temperature: -20℃~+50℃
  • Voltage: AC 200~250V 50/60Hz

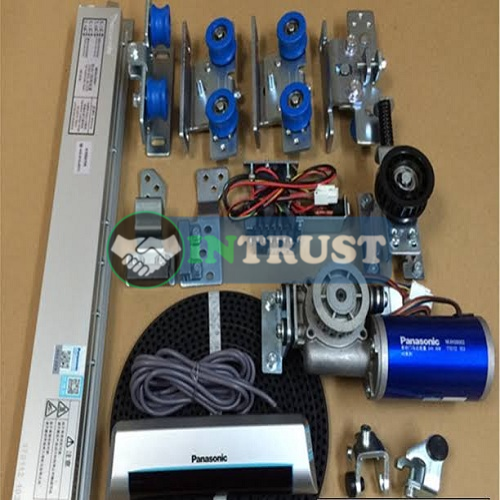

H3, PANASONIC auto door intrust bd

H3, PANASONIC

  • Motor: DC DC24V 60W DC brush-less
  • Door weight max.: 1x90kg, 2x90kg
  • Door Width: 540-1205mm
  • Opening speed: 14-37cm/s
  • Closing speed: 9-35cm/se
  • Open duration: 0~9s
  • Ambient temperature: -20℃~+50℃
  • Voltage: AC 200~250V 50/60Hz

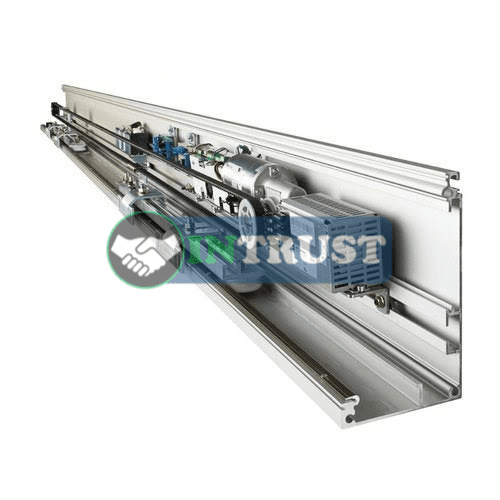

dorma motion sensor door

ES200 EASY, DORMA, GERMANY

  • Door weight max.: 1x120kg, 2x100kg
  • Door Width: 700-3000 mm
  • Opening speed: 10-50 cm/s
  • Closing speed: 10-40 cm/s
  • Hold open time: 0.5~30
  • Power consumption: 180W
  • Ambient temperature: -20℃~+50℃
  • Voltage: AC 200~250V 50/60Hz
remote control glass door bd

VEZE 155, CHINA

  • Door weight max.: 1x155kg, 2x145kg
  • Door Width: 500-1200 mm
  • Opening speed: 100-600 mm/s
  • Closing speed: 120-500 mm/s
  • Hold open time: 0~9 s
  • Motor: 24V 60/100W brush-less DC
  • Ambient temperature: -20℃~+60℃
  • Voltage: AC 200~250V 50/60Hz
Sensor Door System bd

VEZE 100, CHINA

  • Door weight max.: 1x100kg, 2x90kg
  • Door Width: 500-1200 mm
  • Opening speed: 150-600 mm/s
  • Closing speed: 120-500 mm/s
  • Hold open time: 0~9 s
  • Motor: 24V 60/100W brush-less DC
  • Ambient temperature: -20℃~+60℃
  • Voltage: AC 200~250V 50/60Hz

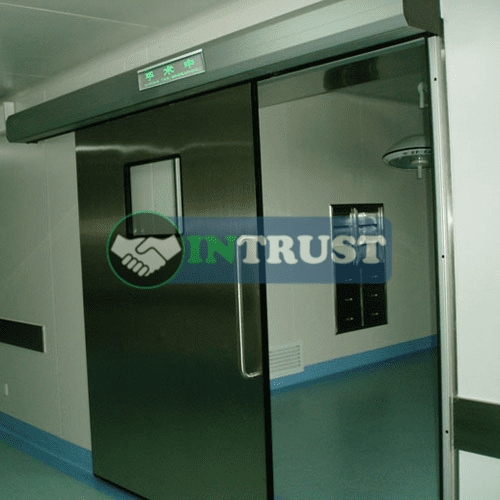

automatic hospitality door, hermetic door bd

Automatic Hospital Door

  • Door weight max.: 120kg
  • Door Width: 700-1500mm
  • Opening speed: 50-90cm/s
  • Closing speed: 50-90cm/s
  • Open duration: 1~9s
  • Ambient temperature: -20℃~+50℃
  • Voltage: AC 200~250V 50/60Hz

Features and Benefits of InTrust Automatic Sliding Door ' Sensor Door '

Economics:  With the Panasonic H3, InTrust is able to offer a particularly competitive sliding door operator based on the proven capabilities of InTrust products.
Smooth and Silent:  It moves silently with the use of DC brush-less motor and moves smoothly due to highly precise design.
Power Saving: High efficiency circuit is designed in order to save electricity.
DC Brush-less Motor: DC brush-less motor benefits with high rotational speed, low electric consumption & protection from overloading. more advantages are rapid response, potential torque, plus linear variation for voltage.
User Friendly: Due to it user friendly module, it’s easily adaptable to individual requirement.

Area of Applications

  • Residential.
  • Commercial Buildings / Shopping Malls.
  • Showrooms
  • Hospitals / Hotels.
