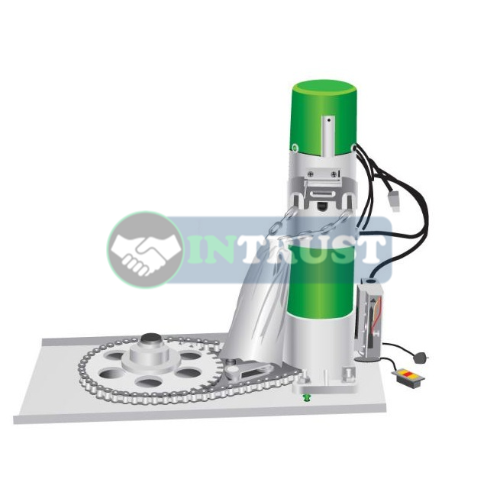

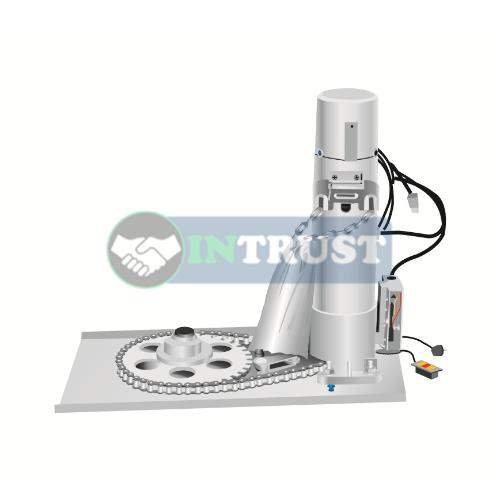

Automatic Rolling Shutter Side Motor

InTrust automatic rolling shutter Side Motor is a kind of motor, which is installed at side of a shutter door, so we call it Side Motor. Side motor is a long year’s technology, as this type of motor is stronger in power; markets accept this motor as a very popular choice for heavy doors, such as factory doors, industrial doors, front shops etc. Now it is still widely popular in the markets. InTrust Supply and installed  side motors, mainly the 300kg AC, 600Kg AC, 800Kg AC, 1,000Kg AC and 2,000Kg AC motors (rolling shutter motor price & Shutter Motor Importer, rolling shutter motor price ).

The offered shutter motors are manufactured by using cutting edge technology and superior quality raw material at our ultra-modern production unit. A team of quality experts test these shutter motors upon different parameters for maintain their flawlessness. Besides, clients can avail these shutter motors from us at nominal prices.

Automatic Rolling Shutter Side Motor

300KG, AC, Automatic Roller Shutter Motor

  • Rated Voltage: 220V/50HZ
  • Rated Power: 250W
  • Rated Current (A): 2.8
  • Carrying Capacity (Kg): 300
  • Output Torque(N.m): 168
  • Output Speed (RPM): 5.00
  • Short-term Rotation Min: 8
  • Standard Drum Diameter (inch): 4
Automatic shutter motor

1,000KG, AC, Automatic Roller Shutter Motor

  • Rated Voltage: 220V/50HZ
  • Rated Power: 400W
  • Rated Current (A): 4.9
  • Carrying Capacity (Kg): 1,000
  • Output Torque(N.m): 809
  • Output Speed (RPM): 3.5
  • Short-term Rotation Min: 8
  • Standard Drum Diameter (inch): 6
Roller Shutter Motor

600KG, AC, Automatic Roller Shutter Motor

  • Supply  Voltage: 220V/50HZ
  • Rated Power: 370W
  • Rated Current (A): 3.3
  • Carrying Capacity (Kg): 600
  • Output Torque(N.m): 412
  • Output Speed (RPM): 4.8
  • Short-term Rotation Min: 8
  • Standard Drum Diameter (inch): 5
rolling shutter motor price

1,500KG, AC, Automatic Roller Shutter Motor

  • Rated Voltage: 380V/50HZ
  • Rated Power: 1,000W
  • Rated Current (A): 3.8
  • Carrying Capacity (Kg): 1,500
  • Output Torque(N.m): 1617
  • Output Speed (RPM): 3.5
  • Short-term Rotation Min: 13
  • Standard Drum Diameter (inch): 6
Side Motor

800KG, AC, Automatic Roller Shutter Motor

  • Rated Voltage: 220V/50HZ
  • Rated Power: 400W
  • Rated Current (A): 4.7
  • Carrying Capacity (Kg): 800
  • Output Torque(N.m): 647
  • Output Speed (RPM): 4.0
  • Short-term Rotation Min: 8
  • Standard Drum Diameter (inch): 5
Roller Shutter Motor

2,000KG, AC, Automatic Roller Shutter Motor

  • Rated Voltage: 380V/50HZ
  • Rated Power: 1,000W
  • Rated Current (A): 4.1
  • Carrying Capacity (Kg): 2,000
  • Output Torque(N.m): 2450
  • Output Speed (RPM): 3.6
  • Short-term Rotation Min: 13
  • Standard Drum Diameter (inch): 8

The Features & Characteristics of Side Motor:

  • Heavy duty
  • Electromechanical limit switch
  • Pre-wiring capacitor.
  • Easy unlocking with possibility of interlocking
  • Galvanized steel guide with chain drag system Compact construction, large torque, and running without noise.
  • With the national patent of Chain-break protection.
  • The motor will not burn down for the protection of thermal effect
  • Separate circuit control ensures the security
  • Safety brake, accurate limited control positioning,with double limit switch protection, prevent door over roll-up.
  • UPS automatic system is available, No bother of power failure
  • Can work with remote controller
  • Easy to install, easy to maintenance and long useful life
