Access Control Management Tripod Turnstile Barrier

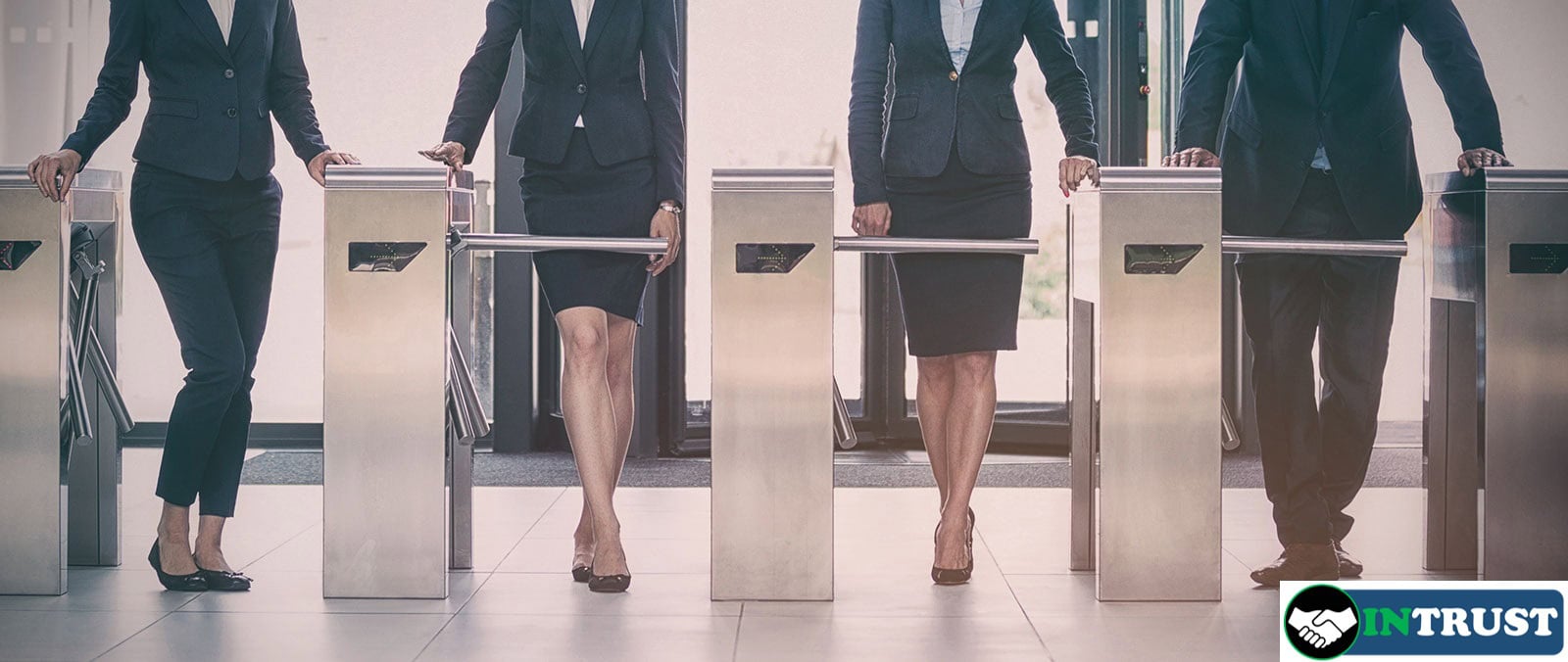

InTrust tripod turnstile is a gate with three rolling 3 arms. InTrust Tri-pod turnstiles restrict access to one person at a time with a set of rotating tripod barrier arms. The tripod turnstile gate is suitable for all kinds of public places that require pedestrians to, such as corporate office, museums, embassies, exhibition halls, ferry’s, railway stations, and other places where ticket inspection is needed, factory time attendance, canteen, stadiums, monthly card leisure centers and other places that require authorization to enter; electronic factory anti-static control areas, need to identify faces, identify fingerprints and other security measures are required facility.

InTrust 3 arms turnstile is configured with two square solenoid valves to control in and out, locking and unlocking. After the authorization is allowed, the solenoid drives the locating arm to unlock. The release lever can be rotated in one direction. And the user can gently push the arm through the passage. During power failure condition, the arm will drop down automatically for the free pass

Technical Descriptions of Tripod Turnstile Barriers

Supply Voltage:

110V-240V, 50HZ

Working temperature:

-35℃ ~ 60℃

Relative Humidity:

≤95%, No Condensation

Max-Access Width:


Passing Speed:


Input Interface:

+12 V level signal or pulse width> DC12V pulse signal of 100ms

Solenoid valve:



L1400*W280*H980mm (May vary)


304 Stainless Steel

Weight :

60Kg Arm length:500(mm) (May vary)

Arm turning direction:

Single direction, bi-direction (optional).

Communication interface:

RS485/Relay signal

Communication distance :


Equipped with a hydraulic shock absorber, the speed of the arm can be adjustable, the operation is smooth and noiseless.
