Automatic High Speed PVC Roller Shutter/Door

Automatic High Speed PVC Roller Shutter/door, PVC shutter price in bd, High speed shutter, shop shutter price in bangladesh, রোলার সাটার , shutter
Height Speed PVC shutter door, Automatic High speed PVC shutter, Automatic High speed PVC shutter door bd

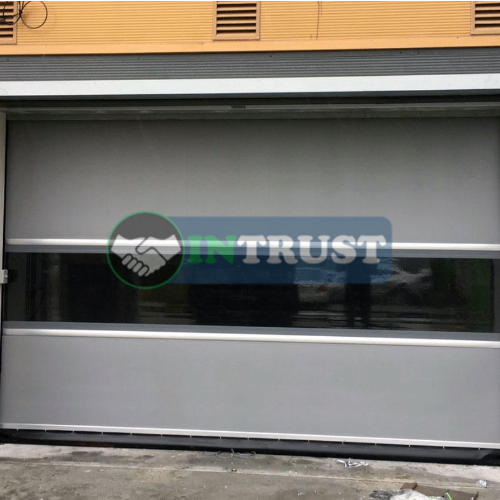

InTrust  Automatic High Speed PVC Roller Shutter/door’s are designed for fast open and close, allowing people and/or equipment to move quickly through the opening, The  InTrust Automatic High Speed Shutter door’s are ideal for large size opening and designed for high performance everyday use both internally and externally with minimal maintenance. PVC shutter price in bd,  shop shutter price in bangladesh, রোলার সাটার  and shutter,  or PVC shutter price in bd, High speed shutter or shop shutter price in bangladesh, রোলার সাটার  and shutter

The door operated as speed > 1m/s, this model doors offers beneficial energy saving in both commercial and industrial application. In additional it reduces noise and dust from nearby working areas. It was ideally choice for many commercial and industrial application. The main functions of the quick door’s are heat preservation, moisturizing, dust-proof, insect proof, sound insulation, wind resistance and etc., so that the workshop maintains a constant temperature, constant humidity and consecrate working environment. Suitable for food, medicine, electronics, rubber, chemical, automotive, textile, logistics and other fields.

The Technical Parameter & Product Features of Automatic High speed PVC Roller shutter/Door

  • Strong and sturdy: The lighter fabric curtain in the quick door has a transparent window with horizontal metal ribs. The sealing brush has a wind blocking function. At the same time, the main material of the fast door is some corrosion-resistant aluminum alloy, so its toughness is very good, it can resist oxidation, it will not easily fade, and it is very convenient to maintain.
  • Safe and reliable: The quick door opens the entire passing height in an instant, allowing the driver to fully see the transport path, thus avoiding collisions.
  • Opening method: The quick door has a variety of manual and automatic control methods, such as electric buttons, manual drawstrings, geomagnetic induction, infrared microwave sensing, etc., to meet the user’s requirements for door opening and closing methods.
  • Intelligent: Fast doors are very intelligent, only need to set the lower limit and upper limit, the fast door can be changed according to the parameters we designed after starting.
Opening speed0.6~1.5m/s
Closing speed0.6~1.5m/S
SW max9500mm
SH min/max600 – 9500mm
Power supply1 phase 220v/110v3 phase 220v/380v/420v/480v
Drive motorGear motor 0.75~3.0kw / ip55
Controller system’sEncoder / limit switch
FrameworkStandard: stainless steel 201 optional: stainless steel 304, steel pouting
TrackStandard: stainless 201 optional: aluminum, stainless steel 3041
Door curtainPvc curtain thickness 0.8mm high density polyester fabric (We can provide as per requirement)
Safety featurePhotocell safety sensor safety edge bottom
Working temperature-10 ~ +50℃
Command system (optional)Radar, loop sensor, rope switch, remote control, fingerprint, key card, Face detector, remote control, wifi control

We can customize the best product for our customers according to their demands.

If you have any questions, please feel free to contact us . We will get in touch with you within short time. We are waiting for your message and hope to cooperate with you!
