Automatic Flap Barrier

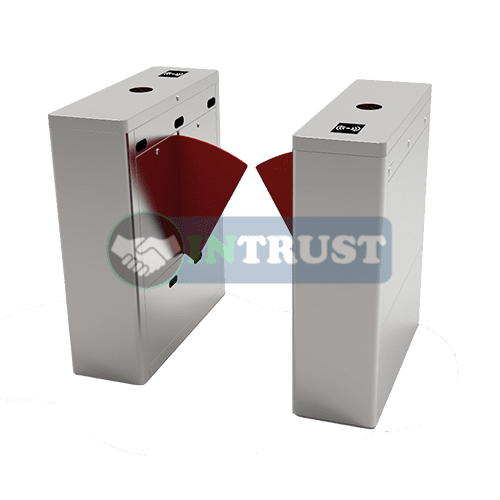

FBL 1011
Power requirements: AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperature: -28℃~60℃
Working humidity 5%~80%
Working environment: Indoor/outdoor (if sheltered)
Speed of throughput: RFID,Fingerprint Maximum 30/minute
Lane width(mm): 600
Footprint(mm*mm): 1200*870
Dimensions(mm): L=870,W=300,H=1000
Net weight(kg): 97
LED indicator: Y
Cabinet material: SUS304 Stainless Steel
Lid material: SUS304 Stainless Steel
Barrier material: Acrylic
Barrier movement: Retracting
FBL 2011
Power requirements: AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperature: -28℃~60℃
Working humidity 5%~80%
Working environment: Indoor/outdoor (if sheltered)
Speed of throughput: RFID,Fingerprint Maximum 30/minute
Lane width(mm): 600
Footprint(mm*mm): 1200*1150
Dimensions(mm): L=1150,W=300,H=1000
Net weight(kg): 119
LED indicator: Y
Cabinet material: SUS304 Stainless Steel
Lid material: SUS304 Stainless Steel
Barrier material: Acrylic
Barrier movement: Retracting
FBL 2022
Power requirements: AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperature: -28℃~60℃
Working humidity 5%~80%
Working environment: Indoor/outdoor (if sheltered)
Speed of throughput: RFID,Fingerprint Maximum 30/minute
Lane width(mm): 600
Footprint(mm*mm): 1200*1150
Dimensions(mm): L=1150,W=300,H=1000
Net weight(kg): 119
LED indicator: Y
Cabinet material: SUS304 Stainless Steel
Lid material: SUS304 Stainless Steel
Barrier material: Acrylic
Barrier movement: Retracting

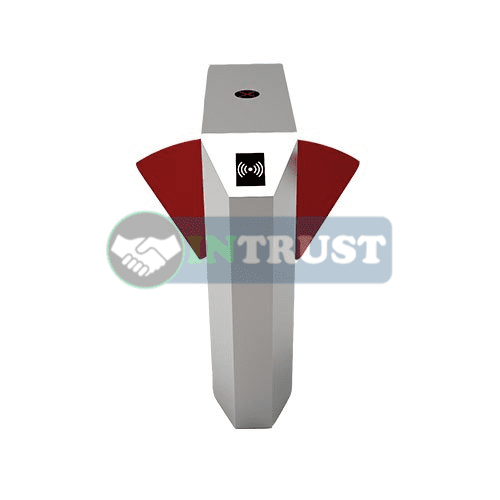

FBL 2222
Power requirements: AC 100 ~ 120V/200 ~ 240V, 50/60Hz
Working temperature: -28℃~60℃
Working humidity 5%~80%
Working environment: Indoor/outdoor (if sheltered)
Speed of throughput: RFID,Fingerprint Maximum 30/minute
Lane width(mm): 600
Footprint(mm*mm): 840*1150
Dimensions(mm): L=1150,W=300,H=1000
Net weight(kg): 69
LED indicator: Y
Cabinet material: SUS304 Stainless Steel
Lid material: SUS304 Stainless Steel
Barrier material: Acrylic
Barrier movement: Retracting
